Extreme Precision
Accurate perception data.
EMBODIED INTELLIGENCEEmbodied-intelligence 3D Vision Sensor Product Line

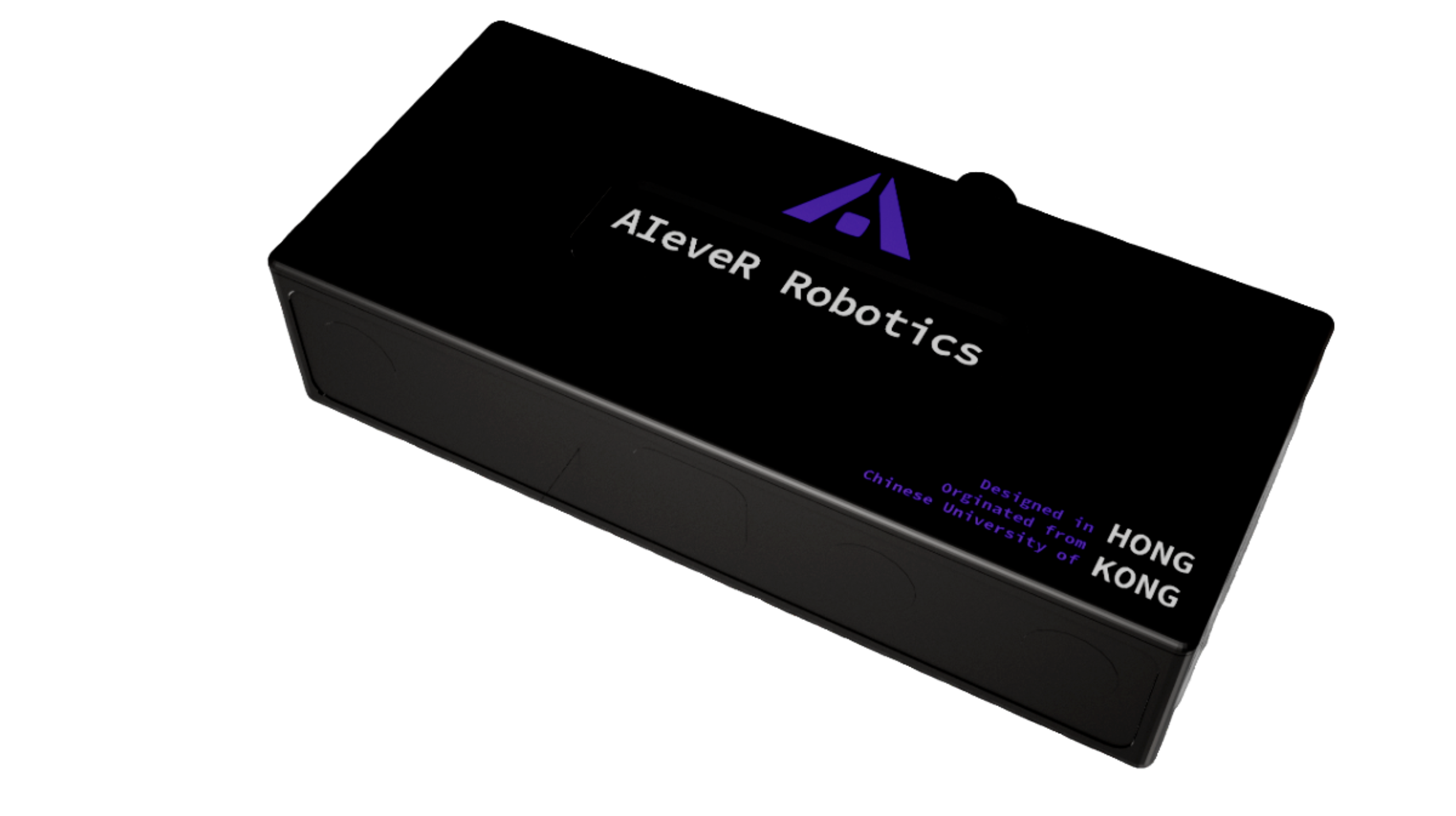

Area Structured-light Fast Reconstruction (Nano)
Speckle imaging combined with binocular AI algorithms, fuses 3D depth and AI technologies, accurately perceives environments and objects, providing core visual support for embodied-intelligence robots.
Core Advantages
以更高效率與更低門檻, 賦能具身智能視覺感知快速落地
02
Long-term Stability
Supports long-term fault-free operation.
03
Compact and Easy to Use
Compact structure for easy integration into a wide range of intelligent robots.
04
Ultra-fast Real Time
Millisecond-level response and capture.
05
All-scenario Adaptability
Reliable output even with transparent objects and complex environments.
Technical Specifications
/ Technical Specifications| 型号 |  Nano(視覺魔方) |
|---|---|
| 推薦工作距離(mm) | 300~700 |
| 解析度(MP) | 1280x1024 |
| 近視野(FOV)(mm) | 189x178@300mm |
| 遠視野(FOV)(mm) | 494x434@700mm |
| XY方向解析度(mm) | 0.15@300mm |
| 是否配RGB相機 | 是 |
| 典型採集時間(s) | 0.5 |
| 2D典型採集速率 | 20fps |
| Z向單點重複精度 | ＜0.05%@700mm |
| 尺寸(mm) | 126x56x29 |
| 重量 | 261.7g |
| 光源 | 藍光LED |
| 數據介面 | GigE |
| 外殼防護等級 | IP65 |

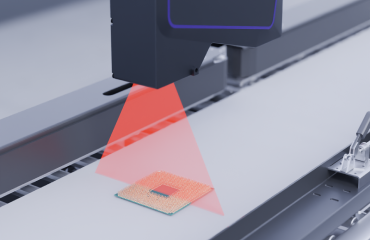

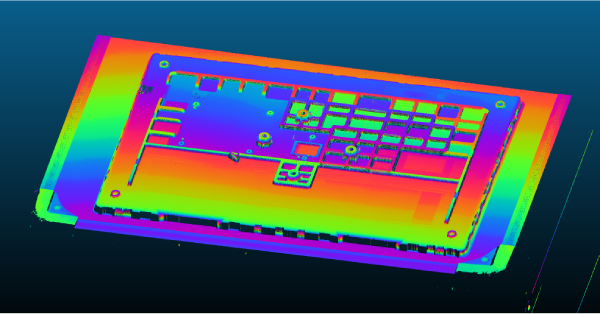

Typical Object Measurement Scenarios and Point Cloud Examples
/ Measurement Scenarios and Point Clouds見證 EI 系列在實際工業環境中的卓越表現.

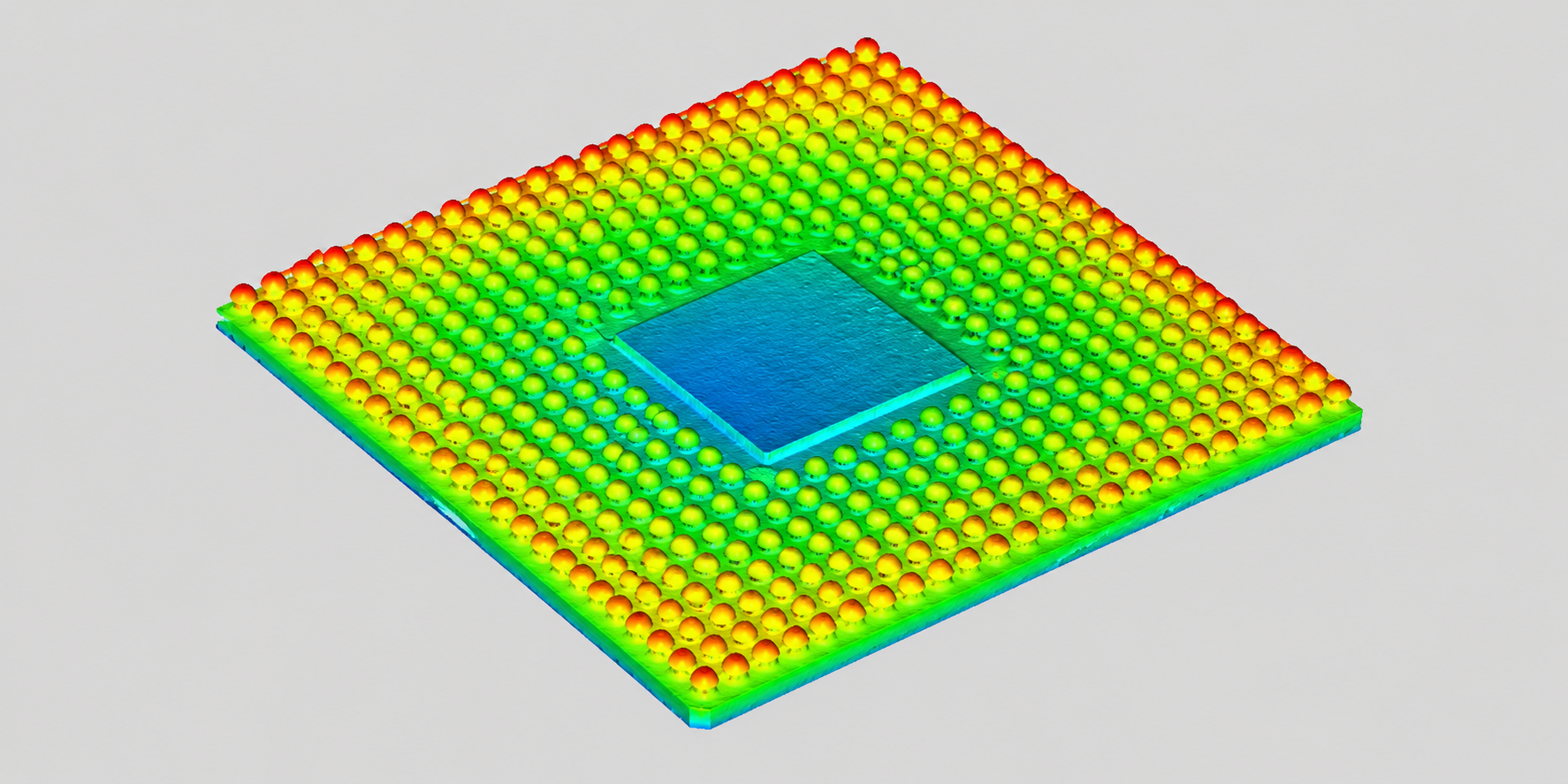

BGA 焊點檢測
Selection and FOV Calculator
/ Camera SelectorBETA · Coming SoonCamera Selector Preview
Interactive calculation is coming soon
FOV Width W —FOV Height H —Pixel Resolution —

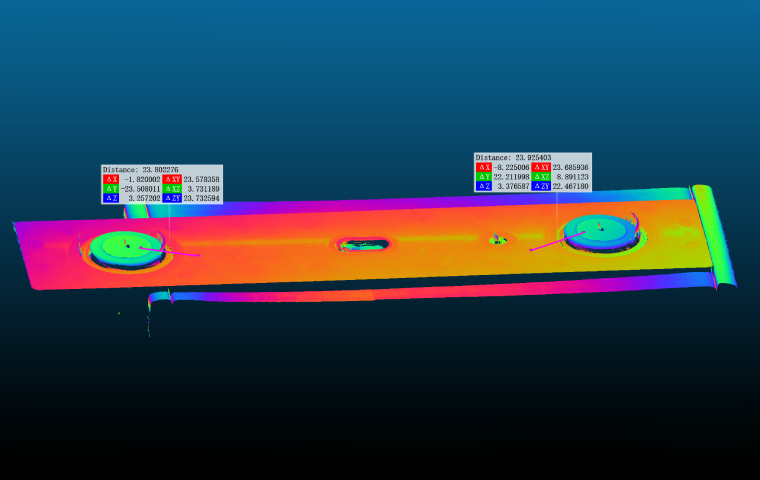

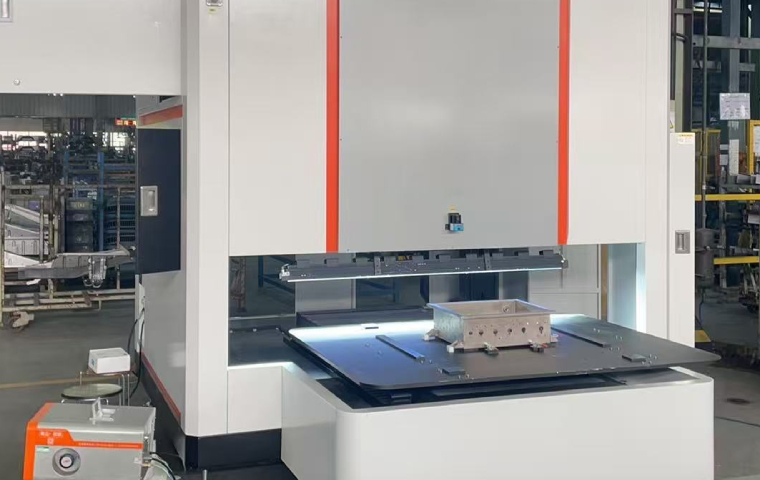

Application Cases
/ Application Cases
開啟工業具身智能 新紀元
我们的专家团队已准备好为您量身定制工业智能解决Solution.Contact Us, 获取全方位的技术咨询与报价建议.
